| Brand Name : | H3C |
| Model Number : | H3C Switch S5720-36C-PWR-EI-DC |
| Price : | $1,500.00/pieces 1-9 pieces |

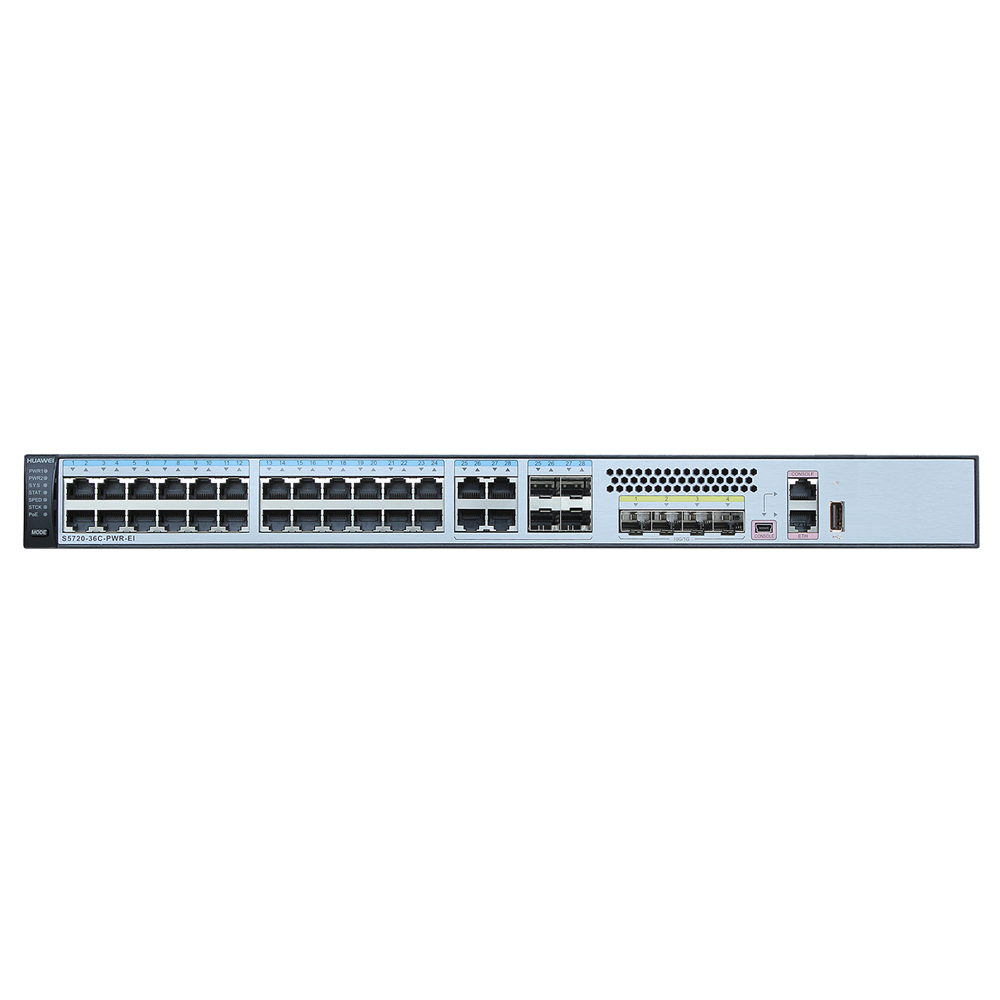

S5720-36C-PWR-EI-DC (28 Ethernet 10/100/1000 PoE+ ports,4 of which are dual-purpose 10/100/1000 or SFP,4 10 Gig SFP,with 650W DC power) Huawei’s S5720-EI Series Gigabit Switches provide resilient, energy-efficient GE ports for access switching in data centers, and aggregation switching in enterprise campus networks. Performance enhancements include advanced processing hardware, 10 Gbit/s uplink ports, and large MAC address and routing tables; Super Virtual Fabric (SVF) support enables intelligent virtualization, iStack clustering, and operation in N + 1 backup mode for simplified O&M and high availability. Mature IPv6 features ensure smooth migration to next-generation IP networking.
Table 1 shows the Quick Specs.
| Product Code | S5720-36C-PWR-EI-DC |
| Extended Slot | One extended slot supporting a service subcard or stack card |
| Switching Capacity | 598 Gbit/s |
| Forwarding Performance | 132 Mpps |
| Downlink Interfaces | 28 x 10/100/1,000 Base-T Ethernet ports |
| Uplink Interfaces | 4 x combo 100/1,000 Base-X SFP ports, and 4 x 10G SFP+ ports |
| PoE Available | PoE+ |
| Power Supply | Double hot-swappable DC power supplies, one AC/DC power module is configured by default |
| Memory (RAM) | 2 GB |
| Flash | 340 MB |
| Dimensions (W x D x H) | 442 mm x 420 mm x 44.4 mm |
| Weight | Empty: ≤ 8 kg (17.64 lb) Fully loaded: ≤ 12 kg (26.46 lb) |
Table 3 shows the comparison of S5720-36C-PWR-EI-DC and S5720-32P-EI-AC.
| Product Code | S5720-36C-PWR-EI-DC | S5720-32P-EI-AC |
| Switching Capacity | 598 Gbit/s | 598 Gbit/s |
| Forwarding Performance | 132 Mpps | 48 Mpps |
| Fixed Interfaces | 28 x 10/100/1,000 Base-T Ethernet ports, 4 x combo 100/1,000 Base-X SFP ports, and 4 x 10G SFP+ ports | 24 x 10/100/1,000 Base-T Ethernet ports, 4 x 100/1,000 Base-X SFP ports, and 4 x 1,000 Base-X SFP ports |
| PoE Available | PoE+ | No |
| Extended Slot | One extended slot that supports an uplink interface card or private stack card | NA |
| Dimensions (W x D x H) | 442 mm x 420 mm x 44.4 mm | 442 mm x 220 mm x 43.6 mm |
| Front Power Input | No | Yes |
|
|
